Inraosseous Injection Driver

Has immediate emergency applications
Used in necessary cases where vascular access is difficult
Can be used for adults as well as children
Designing this product to improve clinical efficiency, patient safety and comfort and reduce complications and costs

Fast, useful and reliable

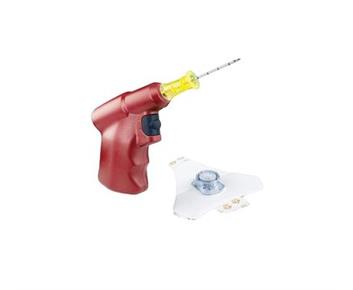

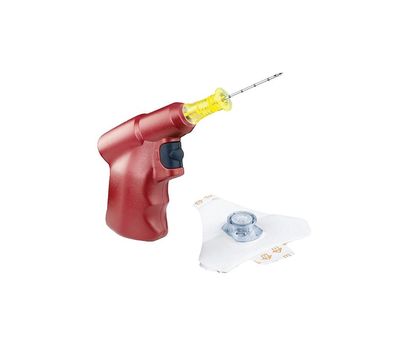

The EZ-IO inraosseous injection system consists of a driver handle and needles of different sizes, through which intraosseous access for medical purposes including medical, therapeutic, and diagnostic is possible
The speed and torque of this device have been carefully adjusted in accordance with the needles in order to quickly penetrate the bone and have proper control.
This product is designed to improve clinical efficiency, patient safety and comfort and reduce complications and costs.
EZ-IO can be used for adults as well as children for immediate emergency applications or in urgent cases where vascular access is difficult.
The injection sites of this product include Proximal tibia, Distal tibia and Proximal humerus.
Variety of needle sizes:
  • 15mm, 25mm, 45mm

Emergency uses:

  • Septicemia
  • Trauma
  • Hypothermia treatment
  • Variable level of consciousness
  • Sickle crisis
  • Heart failure
  • Respiratory arrest
  • Rapid drug injection
  • Seizures / epilepsy
  • Access to the central lane
  • End stage of kidney disease
  • Stroke
  • Diabetes
  • Drug overdose
  • Hemodynamic instability
  • Anaphylaxis shock
  • Burns
  • Cardiac arrhythmias

Non-emergency uses:

  • Vascular set access
  • General anesthesia
  • Antibiotic treatment
  • Metabolic disorders
  • Sedative injection
  • the pain
  • Induction of labor
  • Chest pain
  • Surgery
  • Laboratory analysis
  • Prohibited usage:
  • Fracture in the place of the desired bones for injection
  • Tissue destruction or insufficient access to the anatomically defined site for injection
  • Infection at the injection site
  • History of orthopedic surgery at the injection site (limb and joint prosthesis)
  • History of injections in the last 48 hours

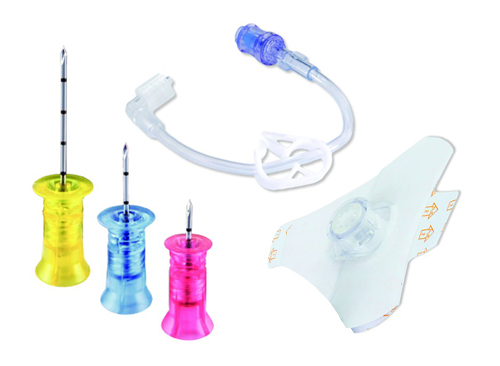

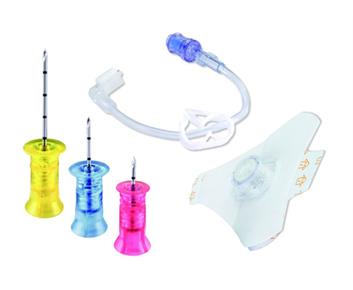

EZ-IO needle set components:

  • 15 Ga sterile needle
  • EZ-Connect injection tube
  • Patient's wrist strap
  • Safety device for sharp objects
  • Drug delivery by EZ-IO:
  • Determining the injection site and cleaning the site.
  • Entering the needle and pressing the driver button: when the tip of the needle hits the bone, a black line should be visible on the needle.
  • Stylet exit from the catheter.
  • Connecting the injection tube and flushing normal saline with a syringe (for adults, 10 cc and for children, it is considered proportional to the weight.)
  • Injection

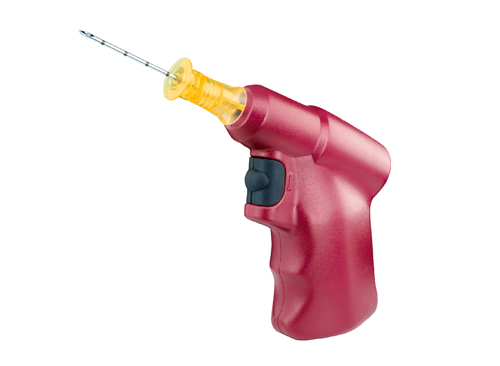

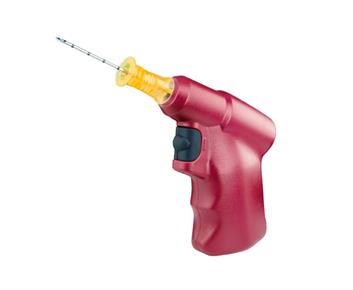

EZ-IO Driver

Description Specifications No Code
Vascular Access Driver Battery: lithium cannot be charged
Size: 6.4 * 11.4 * 16.5 cm
Weight: 315 gr 		One driver 9058

EZ-IO Needle Sets

Description Specifications No Code

Size: 1.8 mm
Weight: 5 gr
Material: Stainless Steel
Latex Free 		5 Needles 9079-VC-005

Size: 1.8 mm
Weight: 5 gr
Material: Stainless Steel
Latex Free		 5 Needles 9001-VC-005

Size: 1.8 mm
Weight: 5 gr
Material: Stainless Steel
Latex Free		 5 Needles 9018-VC-005

EZ-Stabilizer

Description Specifications No Code
Fixator Size: 3.2 * 13.3 * 14.6 cm One EZ-stabilizer 9066
