Humid-Vent Filter

Name: Humid-Vent Filter
SKU: 91
Availability: OutOfStock

Two-way filtration is designed to protect the patient and equipment against the passage of bacteria and viruses in the air
Excellent moisture output for minimum flow resistance and proper design to minimize dead space in the filter
99.9999% filtration efficiency
Light and comfortable design

The Humid-Vent filter is a combination of a heat and humidity exchanger (HME) with an antibacterial/viral filter, whereas the HME layer has bacteriostatic and hygroscopic properties and the antibacterial filter has electrostatic and hydrophobic properties. This filter is available in different types of Compact and Pedi, which is unique in its kind.

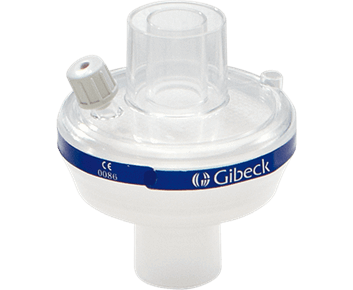

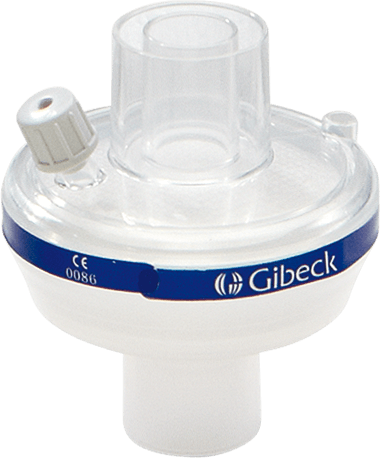

Humid-Vent Filter Compact

Ref	Description	Filter Efficiency %	Moisture Loss (M G H2O/L)	Moisture Output (M G H2O/L)	Weight (G)	Resistance (CM H2O)	DEAD SPACE (ML)	QTY
19401	Straight, Sterile	>99.99999 (bacteria)	6 Vt 500	31 Vt 500	31 (Straight)	1.8 at 60 l/min	35 (Straight)	25
		>99.99999 (virus)	7 Vt 750	30 Vt 750	32 (angled)		38 (angled)
		>99.99999 (tuberculosis)	7 Vt 1000	30 Vt 1000

Humid-Vent Filter Pedi

Ref	Description	Filter Efficiency %	Moisture Loss (M G H2O/L)	Moisture Output (M G H2O/L)	Weight (G)	Resistance (CM H2O)	DEAD SPACE (ML)	QTY
12011	Straight, Sterile	>99.99999 (bacteria)	6 Vt 250	33 Vt 50	13.5 (Straight)	1.4 at 20 l/min	12 (Straight)	20
		>99.99999 (virus)		30 Vt 100	14.5 (angled)		13 (angled)
				30 Vt 250
