Transradial Artery sheath

Name: Transradial Artery sheath
SKU: 148
Availability: OutOfStock

A solution for the needs of challenging patients
Types of arterial access: needle/catheter on needle
Special dilator design
Dilator with ergonomic design and long hub
Diversity in guidewires
It has a special dilator design to eliminate the need to split the skin
Sheath with hydrophilic coating
Silicone coated needle
Reducing the possibility of arterial spasm

When it comes to radial artery catheterization, access to the patient's anatomy can be a challenging factor. With the help of experienced doctors, Teleflex provides solutions for the needs of patients with challenges by providing Trans radial Arrow products

Choices in radial artery access:

Thin-walled needle with micro needle head
Transparent hub to see blood flashback
Silicone coating on the needle for ease of entering the skin and artery wall
Direct access or access through a catheter on the needle

Reducing the possibility of arterial spasm:

Different types of guidewire depending on the vascular needs of the patient and the user's preference:
Guidewire made of stainless steel or nitinol or some with a malleable head for use in tortuous vessels.

Special design of the dilator to eliminate the need for skin incision:

Expanding before inserting the sheath reduces the need to split the skin.
Atraumatic and smooth sheath for dilator passage
Has a hydrophilic coating for ease of entry
Dilator with long hub and ergonomic design
Snap Lock to be placed in the sheath valve body

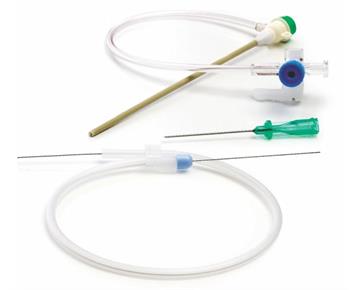

Component Set:

Sheath with hemostat valve, side port and three-way valve
Guidewire
Needle
Dilator
Catheter on needle (in sets with catheter technique on needle)

Product Code: Straight Technique

Ref No	Sheath Size	Sheath Length	Dilator Type	Needle	Guidewire Length
AA-10407-1	4Fr	7 cm	Straight	2.5 cm	45 cm
AA-10411-1	4Fr	11 cm	Straight	2.5 cm	45 cm
AA-10507-1	5Fr	7 cm	Special	2.5 cm	45 cm
AA-10511-1	5Fr	11 cm	Special	2.5 cm	45 cm
AA-10524-1	5Fr	24 cm	Special	2.5 cm	60 cm
AA-10607-1	6Fr	7 cm	Special	2.5 cm	45 cm
AA-10611-1	6Fr	11 cm	Special	2.5 cm	45 cm
AA-10624-1	6Fr	24 cm	Special	2.5 cm	60 cm

Product Code: Needle on Catheter Technique

Ref No	Sheath Size	Sheath Length	Dilator Type	Needle	Guidewire Length
AA-20407-1	4 Fr	7 cm	Straight	20 g / 3.2 cm	45 cm
AA-20411-1	4 Fr	11 cm	Straight	20 g / 3.2 cm	45 cm
AA-20507-1	5 Fr	7 cm	Special	20 g / 3.2 cm	45 cm
AA-20511-1	5 Fr	11 cm	Special	20 g / 3.2 cm	45 cm
AA-20524-1	5 Fr	24 cm	Special	20 g / 3.2 cm	60 cm
AA-20607-1	6 Fr	7 cm	Special	20 g / 3.2 cm	45 cm
AA-20611-1	6 Fr	11 cm	Special	20 g / 3.2 cm	45 cm
AA-20624-1	6 Fr	24 cm	Special	20 g / 3.2 cm	60 cm
