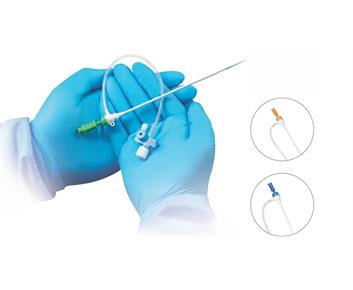

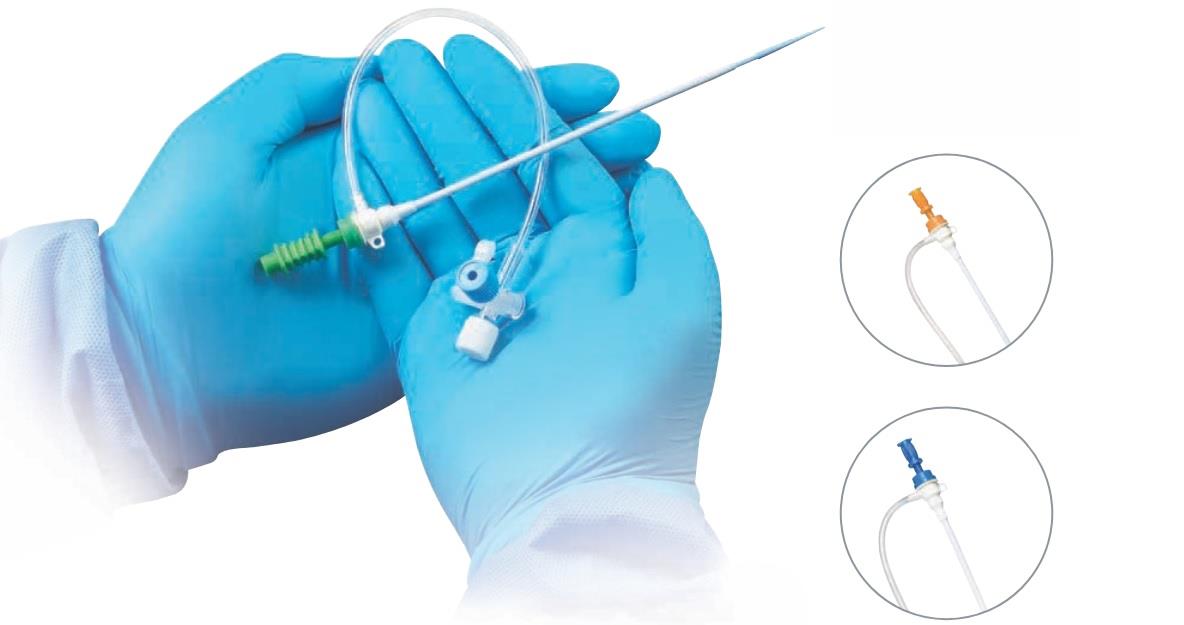

Percutaneous Sheath Introducers

Access to arterial and venous systems
Made of polyurethane material: resistant to kinking
Special structure: reducing the possibility of kinking of the part connected to the hub
Variety of sheath sizes
Special design of the sheath wall with a thick head: reducing the possibility of peel-back or bending
Raulerson syringe: ease of use and increased protection against infection

Ability to use Arrow Advancer

Ease of guidewire entry with one hand
Maintaining the sterile condition of the guidewire
Ability to use 0.021 or 0.035 guidewires

Improved visibility at the entry point

The possibility of using Raulerson syringes in order to reduce contact with blood in the sterile operation site
Needle with thin wall (6.25 cm, 18Ga)
Wide range of sheath sizes

Specifications of 7.5 cm sheath sets

Cm 7.5 practical sheath length
Dilator with the ability to adapt guidewires from 0.021 to 0.025
Cm2.5 sheath head with hydrophilic properties
Placement cm5 of the dilator outside the sheath when placed in the sheath

Specifications of cm11 sheath sets:

Cm11 practical sheath length
Dilator with the ability to adapt 0.035 to 0.038 guidewires
Cm2.5 sheath head with hydrophilic property
Placing cm3 of the dilator outside the sheath when placed in the sheath

CW set components:

Radiopaque, polyurethane sheath with side port for injections, hemostat valve and three-way valve
Dilator
Guidewire
Raulerson syringe
Needle

CP set components:

Radiopaque sheet, polyurethane with side port for injections, hemostat valve and three-way valve
Dilator
Guidewire

CL set components:

Radiopaque sheet, polyurethane with side port for injections, hemostat valve and three-way valve
Dilator

Product Code: CW Set

Ref Code	Sheath Size	Sheath Length	Hub Color	Qnty
CW-08403	4 Fr	7.5 cm	pink	10
CW-08503	5 Fr	7.5 cm	gray	10
CW-08503A	5 Fr	11 cm	gray	10
CW-08603	6 Fr	11 cm	green	10
CW-08703	7 Fr	11 cm	orange	10
CW-08803	8 Fr	11 cm	blue	10
CW-08903	9 Fr	11 cm	black	10

Product Code: CP Set

Ref Code	Sheath Size	Sheath Length	Hub Color	Qnty
CP-08603	6 Fr	11 cm	Green	10
CP-08703	7 Fr	11 cm	Orange	10
CP-08503	8 Fr	11 cm	Blue	10
CP-08903	9 Fr	11 cm	Black	10

Product Code: CL Set

Ref Code	Sheath Size	Sheath Length	Hub Color	Qnty
CL-08403	4 Fr	7.5 cm	pink	10
CL-08403 A	4 Fr	11 cm	ping	10
CL-08503A	5 Fr	7.5 cm	gray	10
CL-08503A	5 Fr	11 cm	gray	10
CL-08603	6 Fr	11 cm	green	10
CL-08703	7 Fr	11 cm	orange	10
CL-08803	8 Fr	11 cm	blue	10
CL-08903	9 Fr	11 cm	black	10
