Twin-pass

Name: Twin-pass
SKU: 158
Availability: OutOfStock

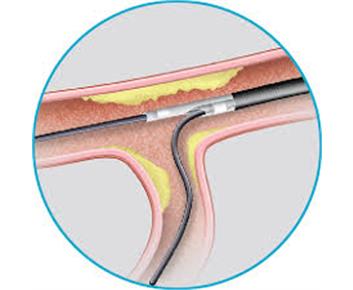

The Dual Access structure of these catheters allows the doctor to simultaneously use the OTW lumen with the following two uses while the primary guidewire is placed in the RX lumen to access the distal areas:
Drug delivery and drug transfer in those areas
Bifurcation branches

By creating another access through an additional lumen parallel to the primary guidewire, the catheter allows the surgeons to pass the second guidewire for intervention or drug delivery to the desired area. Various types of these catheters are offered in two models; 0 or 10 degrees based on the angle of two lumens in relation to one another.

Length (cm)

135 cm

Angel of External port Lumen OTW

Primary Clinical Application

A process that requires a double lumen with precise torque on the branches

Angel of External Port OTW

Marker

95 cm (Single) 105 cm (Double)

Hydrophilic Coating

Distal 25 cm

Distal Tip Length

7 mm
