SuperCross

Name: SuperCross
SKU: 157
Availability: OutOfStock

Suitable for Antegrade and Retrograde cases
Suitable for peripheral and coronary vessels
It has a high advancing power due to having a uniform polymer coating
Having a light and flexible multi-layered shaft for easier access to non-limestone

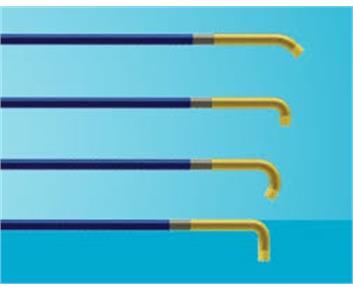

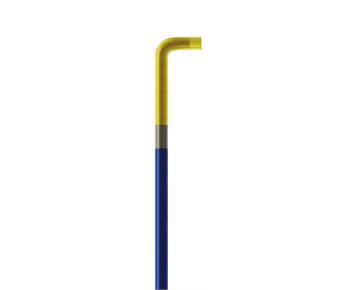

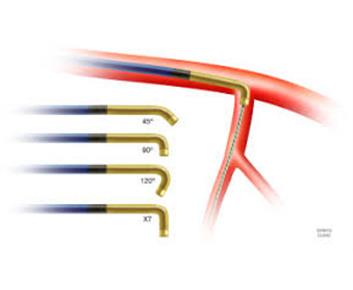

Suitable for accessing winding and indirect vessels due to the angled tip

This family of micro catheters is designed with the aim of delivering intervention tools to soft and non-calcareous scleroderma at various angles.

Catheter Specifications

MODEL	GUIDEWIRE COMPATIBILITY	DISTAL Tip	WORKING LENGTH	SHAFT CONSTRUCTION	DISTAL O.D.	PROXIMAL O.D.	DISTAL I.D.	PROXIMAL I.D.	HYDROPHILIC COATING
5302	0.014”	45°	130 cm	Coiled	2.4 Fr. (0.79 mm / 0.031”)	3.2 Fr. (1.07 mm / 0.042”)	0.017” (0.43 mm)	0.018” (0.46 mm)	Distal 80 cm
5303	0.014”	45°	150 cm	Coiled	2.4 Fr. (0.79 mm / 0.031”)	3.2 Fr. (1.07 mm / 0.042”)	0.017” (0.43 mm)	0.018” (0.46 mm)	Distal 80 cm
5304	0.014”	90°	130 cm	Coiled	2.4 Fr. (0.79 mm / 0.031”)	3.2 Fr. (1.07 mm / 0.042”)	0.017” (0.43 mm)	0.018” (0.46 mm)	Distal 80 cm
5305	0.014”	90°	150 cm	Coiled	2.4 Fr. (0.79 mm / 0.031”)	3.2 Fr. (1.07 mm / 0.042”)	0.017” (0.43 mm)	0.018” (0.46 mm)	Distal 80 cm
5306	0.014”	120°	130 cm	Coiled	2.4 Fr. (0.79 mm / 0.031”)	3.2 Fr. (1.07 mm / 0.042”)	0.017” (0.43 mm)	0.018” (0.46 mm)	Distal 80 cm
5307	0.014”	120°	150 cm	Coiled	2.4 Fr. (0.79 mm / 0.031”)	3.2 Fr. (1.07 mm / 0.042”)	0.017” (0.43 mm)	0.018” (0.46 mm)	Distal 80 cm
5308	0.014”	90° XT	130 cm	Coiled	2.4 Fr. (0.79 mm / 0.031”)	3.2 Fr. (1.07 mm / 0.042”)	0.017” (0.43 mm)	0.018” (0.46 mm)	Distal 80 cm
5309	0.014”	90° XT	150 cm	Coiled	2.4 Fr. (0.79 mm / 0.031”)	3.2 Fr. (1.07 mm / 0.042”)	0.017” (0.43 mm)	0.018” (0.46 mm)	Distal 80 cm

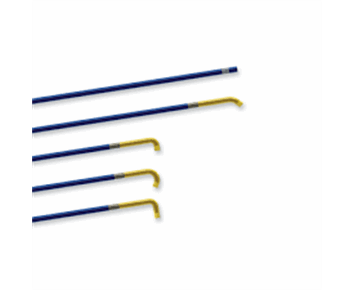

Supercross Microcatheter Straight/FT

Model	GUIDEWIRE Compatibility	DISTAL Tip	WORKING Length	Shaft Construction Braided	DISTAL O.D.	PROXIMAL O.D.	DISTAL I.D.	PROXIMAL I.D.	HYDROPHILIC Coating
5300	0.014”	Straight	130 cm	Braided	1.8 Fr. 0.61 mm / 0.024”	2.5 Fr. 0.84 mm / 0.033”	0.017” (0.43 mm)	0.021” (0.53 mm)	Distal 40 cm
5301	0.014”	Straight	150 cm	Braided	1.8 Fr. 0.61 mm / 0.024”	2.5 Fr. 0.84 mm / 0.033”	0.017” (0.43 mm)	0.021” (0.53 mm)	Distal 40 cm
5340	0.014”	FT	130 cm	Braided	1.8 Fr. 0.61 mm / 0.024”	2.5 Fr. 0.84 mm / 0.033”	0.017” (0.43 mm)	0.021” (0.53 mm)	Distal 40 cm
5341	0.014”	FT	150 cm	Braided	1.8 Fr. 0.61 mm / 0.024”	2.5 Fr. 0.84 mm / 0.033”	0.017” (0.43 mm)	0.018” (0.46 mm)	Distal 40 cm
